Specialized Liquid Tank Containers

Intermodal assets designed to handle liquid products that require higHly engineered components

Specialized Tank Container Types

Tank Containers for Hydrogen Peroxide

  • 17500, 21000, 24000 AND 25000 liter capacity
  • Full frame design
  • Low tare weight
  • Fitted with a breather valve, 10 inch rupture disc and high capacity pressure relief valve
  • Global availability
  • Stainless steel barrel
  • Linings available for high purity grades of peroxide
  • Multiple specification options

Brochure:

Eurotainer Hydrogen Peroxide Tanks_BD

Please Note: This file contains proprietary information that is property of Eurotainer S.A., France. It is intended for the exclusive use of our customers for information and/or service purposes. The recipient agrees not to reproduce or copy this document or its contents in whole or in part without prior written permission from Eurotainer S.A.

Oilfield Specification Tanks

  • A combined tank container and chassis designed for to meet the operational and safety requirements for use in oil fields.
  • 6340 gallon tank containers & chassis equipped for product delivery & storage
  • Oil field specific components comply with US OSHA on-site safety regulations
  • Downpiped & ground level control of product loading line
  • Downpiped & ground level control of air/vent line
  • Collapsible handrail on top of the container for fall protection
  • Extended ladder to safely access the top platform of the container

Also fitted with CLASS I/DIV 2/EXPLOSION PROOF RATED ADVANCED TECHNOLOGY TELEMETRY SYSTEM FOR REMOTE MONITORING AND ALERTING

Brochure:

Eurotainer Oil Field Services Tank Container

Please Note: This file contains proprietary information that is property of Eurotainer S.A., France. It is intended for the exclusive use of our customers for information and/or service purposes. The recipient agrees not to reproduce or copy this document or its contents in whole or in part without prior written permission from Eurotainer S.A.

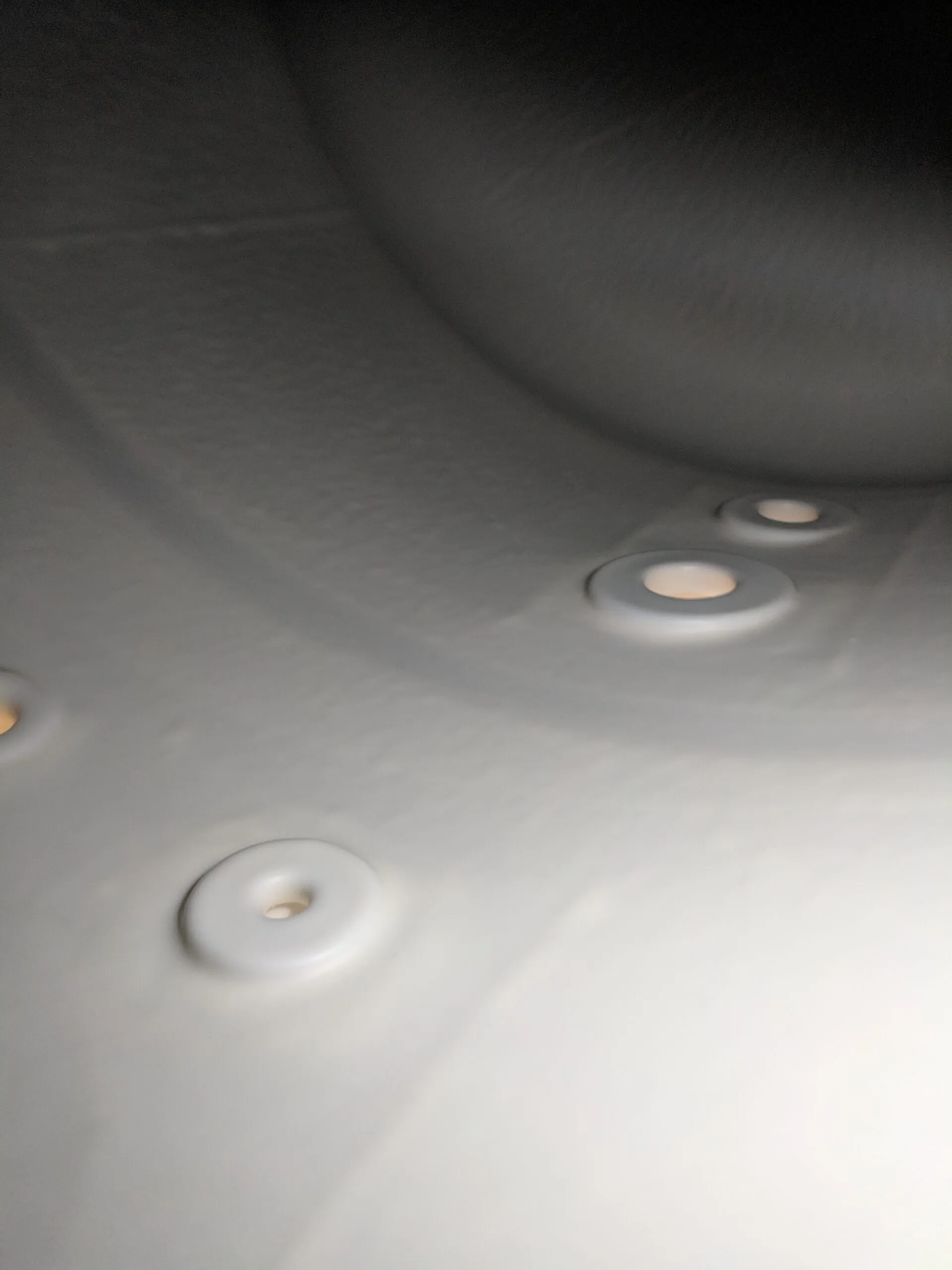

Stainless steel with Polyethylene (PE) Lined Tank Containers

Eurotainer continues its leadership in the use of polyethylene as a protective membrane in the transport of high purity, aggressive and corrosive products. As the next step after pioneering the composite tank containers with polyethylene inner barrels, Eurotainer is now offering stainless steel ISO tank vessel with a rotational, one piece polyethylene liner. PE Lining of ISO tank containers provides a robust solution to troublesome products. Differing from traditional linings/coatings applied via spray or hand-laid sheets, the Eurotainer Polyethylene lined tanks have a homogenous one piece lining applied using a computer controlled rotational lining process. Linear Low Density Polyethylene (LLDPE) provides a mechanical and chemical resistance liner with properties delivering long term service life and compatible with a wide range of chemicals.

High Pressure- T20/T22 Type for dangerous cargoes

  • Lined tanks for corrosive products
  • High pressure tanks, up to 10 bar working pressure
  • Lethal service/poison by inhalation ratings
  • Baffles
  • ASME U stamp rated equipment
  • Fire safe valves
  • Bolted manways

Brochure:

Eurotainer T22 tanks_BD

Please Note: This file contains proprietary information that is property of Eurotainer S.A., France. It is intended for the exclusive use of our customers for information and/or service purposes. The recipient agrees not to reproduce or copy this document or its contents in whole or in part without prior written permission from Eurotainer S.A.

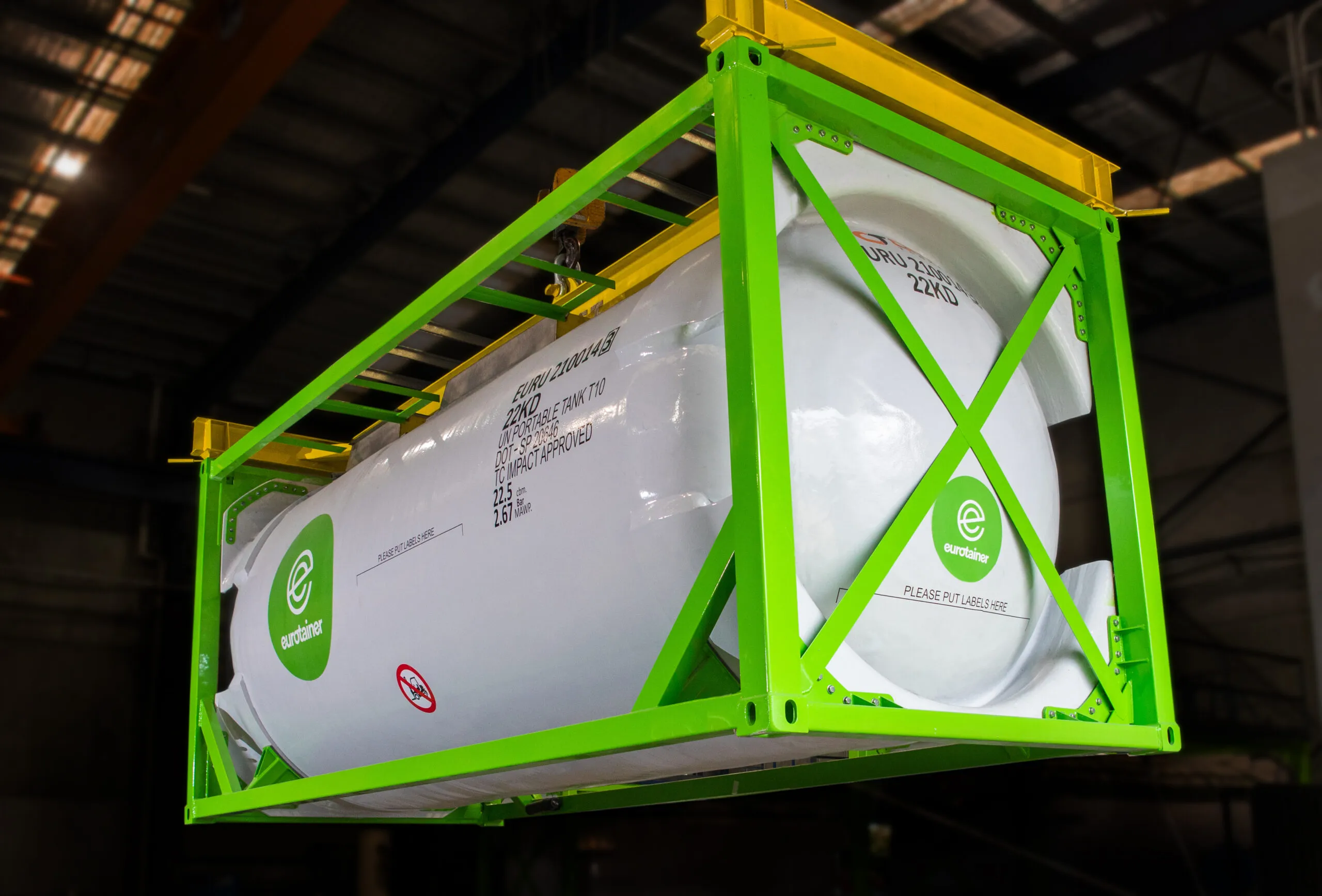

Composite Tank Containers with Polyethylene Inner Barrel for Corrosive Products

High technology composite tanks with exceptional chemical resistance and low tare weight for bulk transportation of corrosive and high purity chemicals.

These tank containers offer a light weight option to traditional lined/coated tanks for transport and storage of corrosive products. This equipment also provides an alternative to shippers of hard-to-clean products and significantly reduces high cleaning costs.

SAMPLE PRODUCT LIST:  Hydrogen peroxide, ammonium hydroxide, ferric chloride, ferrous chloride, hydrochloric acid, hydrofluosilisic acid, nitric acid, phosphoric acid, sodium hydroxide, sodium hypochlorite, sulphuric acid, latex, isocyantes and polymers

Brochure:

Eurotainer brochure Insert_T7T10_Composite_BD

Please Note: This file contains proprietary information that is property of Eurotainer S.A., France. It is intended for the exclusive use of our customers for information and/or service purposes. The recipient agrees not to reproduce or copy this document or its contents in whole or in part without prior written permission from Eurotainer S.A.

Optional Components for Specialized Liquid Tank Containers

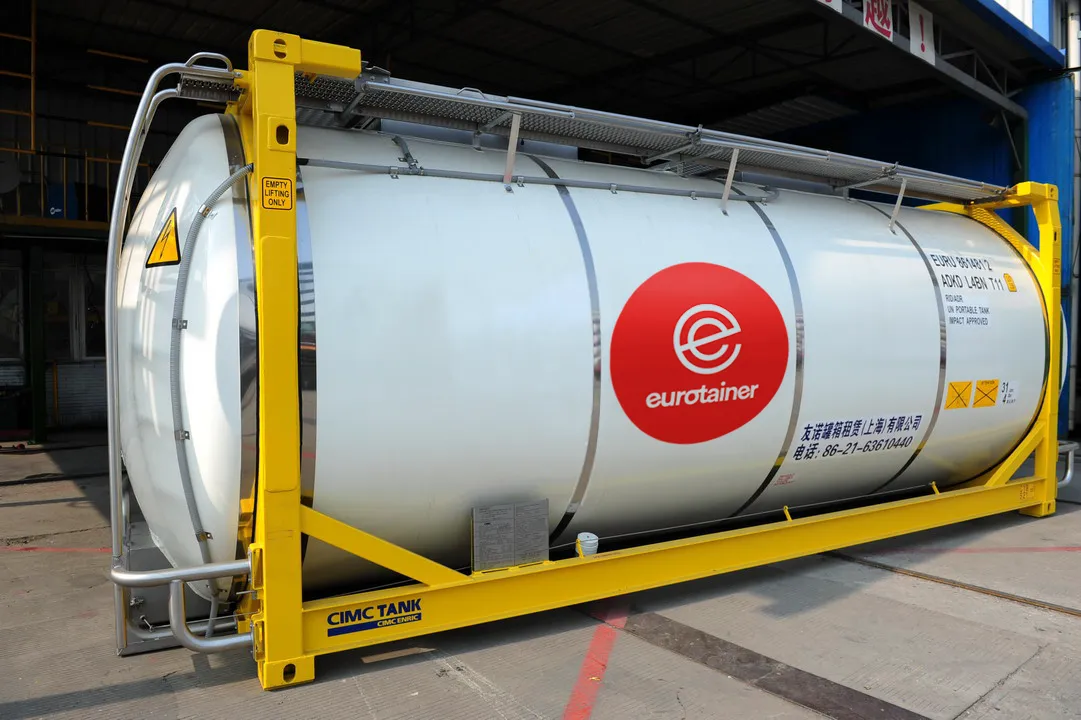

Baffles, collapsible handrails, lining/coating, level gauges, GPS tracking and telemetry systems, lined/coated valves, bottom valve, ground level operated airline, cleaning-in-place system, full coverage walkways, heating/cooling coils, various valve connections and fittings, Chinese domestic tank specification, etc.
